Functionally, it offers great stability during lifting with smooth rotation to prevent load swinging or twisting and has a high load-bearing capacity.

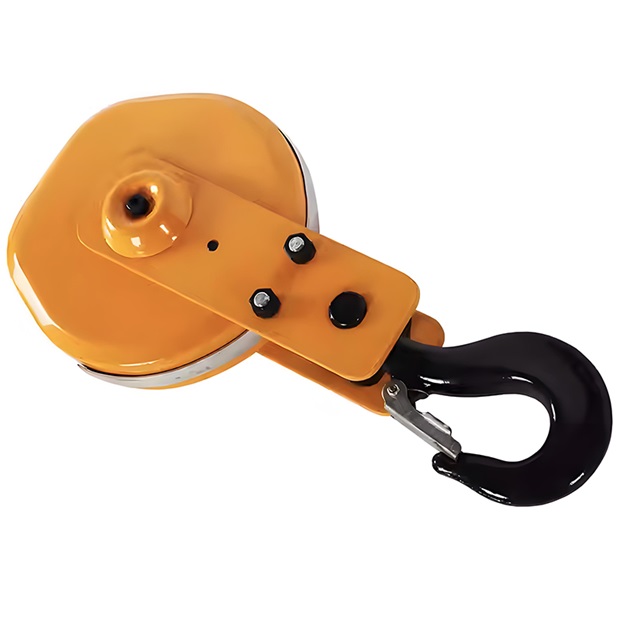

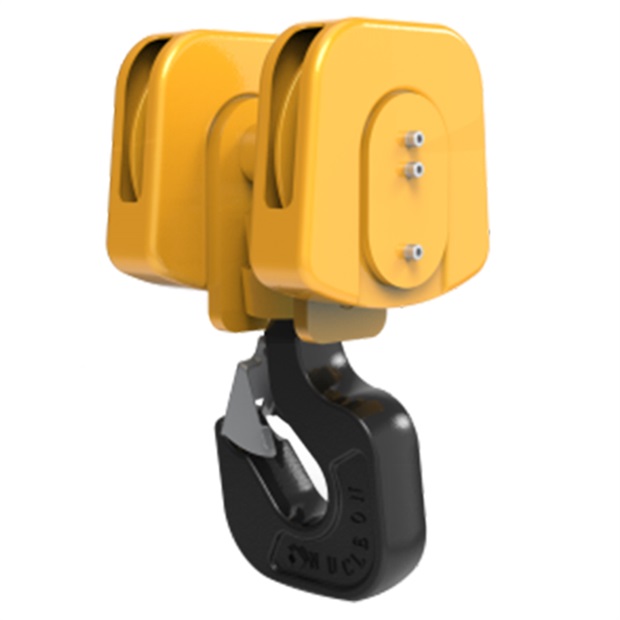

The lifting hook of the European type hoist is a key component with an elegant and practical design made from high-quality forged steel alloys. It has a well-engineered shape for easy load attachment. Functionally, it offers great stability during lifting with smooth rotation to prevent load swinging or twisting and has a high load-bearing capacity. Equipped with anti-detachment devices and meeting safety standards, its surface treatment ensures corrosion resistance and easy inspection. This lifting hook is mainly for manufacturing, construction, ports, and logistics for handling various materials and cargoes.
With a working capacity from 1-20 tons, it can handle various weights of loads for different lifting applications.
The hook, beam nuts made of high-strength forged steel and refined cast steel wheels ensure durability and reliable performance under heavy loads.
The forged hook head, cross-beam, nut, and quality pull - plate form a high-strength structure that supports large load-bearing demands during lifting.
Equipped with thrust bearings, the hook rotates smoothly, facilitating easy and precise position adjustment of the load during the lifting process.
A spring-compressed latch is provided to prevent the load from slipping off the hook, ensuring the safety of the lifting operation.
The compact, small, and light design with low wheel pressure saves space and reduces the load on the support structure. It also has good compatibility and interchangeable parts for easy maintenance.

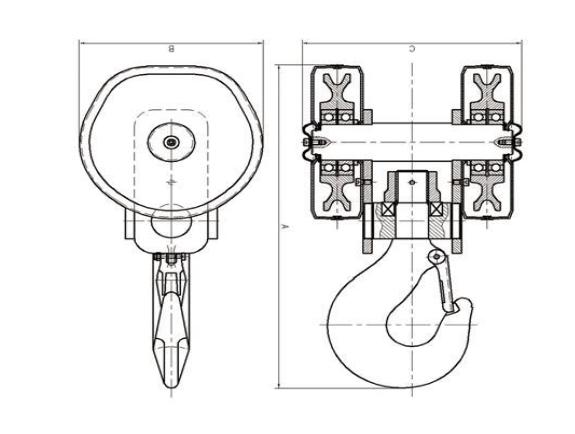

| WLL.(kg) | Dimensions/mm | Diameter of wheel groove | Capacity Steel Rope | Hauteur de levage | Track Type | ||
| A | B | C | |||||
| 1000 | 428 | 201 | 102 | 151 | 7-8 | Unlimited | Unlimited |
| 2000 | 480 | 233 | 119 | 166 | 10-11 | ||
| 3000 | 542 | 244 | 119 | 184 | 12-13 | ||
| 5000 | 620 | 280 | 131 | 215 | 15-16 | ||
| 10000 | 592 | 280 | 335 | 215 | 15-16 | ||
Dafang fournit des ponts roulants, des portiques, des potences, des palans électriques et des pièces de rechange pour grues de haute qualité, etc. Vous pouvez remplir le formulaire ci-dessous et nous vous contacterons dès que possible.
