BMG Gru semiportata a doppia trave

Descrizione

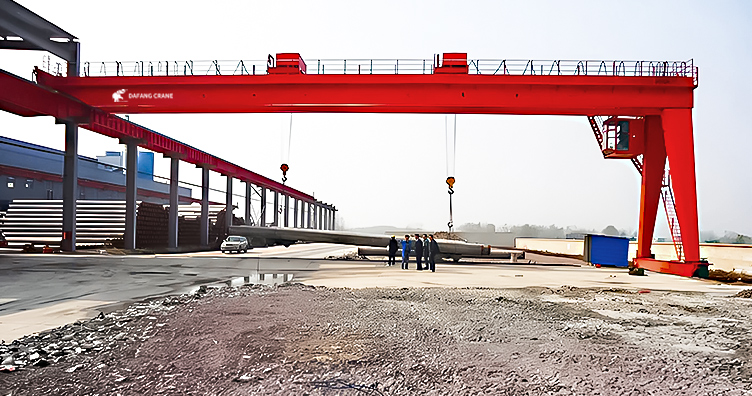

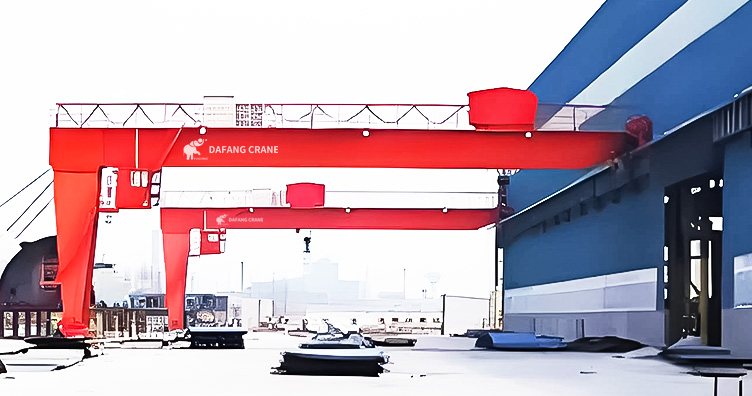

Double beam semi-gantry crane (BMG) is a lifting equipment with a strong structure and strong load-bearing capacity, suitable for medium and heavy material handling tasks. Its main structure includes two main beams, partial legs on one side, and an electric trolley. The two main beams have excellent rigidity and load-bearing capacity, and the surface is anti-corrosion for extended service life. The legs are usually arranged on one side, while the other side relies on the existing structural support of the factory. This design saves space and reduces costs.

The electric trolley is between the two main beams, and the lifting and lateral movement of heavy objects is achieved through electric drive to ensure smooth operation and accuracy. The running mechanism is located at the bottom of the outrigger and uses rubber tires or metal wheels with brake function to ensure smooth operation and positioning accuracy on the track. The entire system is equipped with advanced electrical control systems, including multiple safety protection devices.

The double-beam semi-gantry crane has high design flexibility, and can adjust the span and height according to actual needs. It is suitable for various complex working conditions. It is popular in mechanical manufacturing, steel processing, automobile manufacturing and other industries, and is especially suitable for occasions where large lifting weights and high working efficiency are required. Whether it is handling heavy equipment or performing precision hoisting operations, double beam semi-gantry cranes can provide efficient and stable solutions.

Caratteristiche

1. Compact and affordable: The double-beam semi-gantry crane is mounted on the workshop beam at one end and the other end is running on the ground track. This design saves space and reduces the overall cost of the equipment. At the same time, its structure is compact and can make full use of site resources.
2. Strong load-bearing capacity and high stability: The double-beam structure makes the gantry crane more load-bearing and can cope with heavier cargo handling. In addition, its overall stability is good and can adapt to complex operating environments.
3. Flexible operation and high efficiency: The double-beam semi-gantry crane supports a variety of operating modes, including ground operation, remote control operation and cab operation, to meet the needs of different scenarios. It operates smoothly, has a fast lifting and running speed, which can significantly improve production efficiency.

Applicazione

• Logistics and warehousing industry: Often in logistics hubs, railway freight yards and open-air warehouses, and are used for loading, unloading, handling and stacking of goods. Its powerful lifting capabilities and flexible operation method can efficiently handle large quantities of goods.
• Construction and Infrastructure Industry: In construction sites and infrastructure projects, it can transport construction materials, prefabricated components and equipment. It can adapt to complex working environments and improve construction efficiency.
• Manufacturing: In the manufacturing industry, it is for the handling and assembly of large machinery and metal structural parts, especially in the fields of automobile manufacturing, ship manufacturing and heavy machinery production. It can meet the needs of heavy-duty material handling in the workshop.

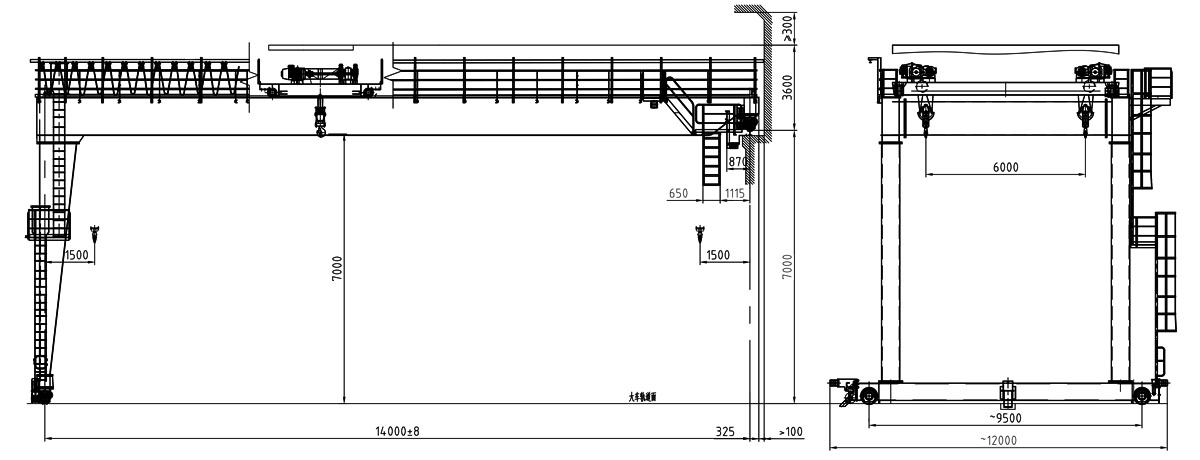

Parametri tecnici

Certificato
