Descrizione

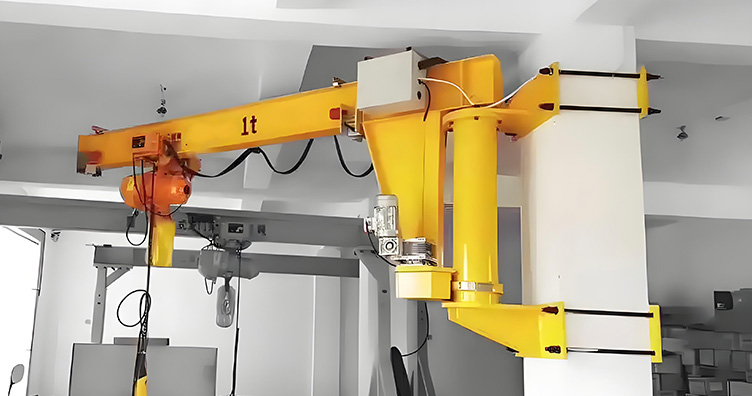

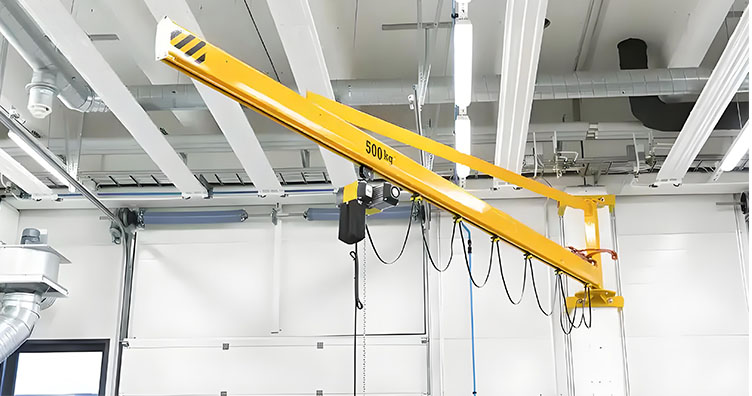

As one of the small lifting equipment, wall mounted jib crane has no requirements for ground space or special foundations. The columns supporting the horizontal beams are replaced by the walls provided by the factory or plant itself.

It is able to rotate 180 degrees, with the lifting capacity of up to 5 tons and a boom length of up to 7 meters. This allows working in the narrowest factories, warehouses or other industrial spaces.

Firmly mounted on the wall, it does not occupy floor space. Composed of a sturdy crossbeam, a smooth rail and a lifting device, it is easy to operate. Users could choose rated lifting capacity for precise lifting of materials. Suitable for use in factories, warehouses and other locations, whether it is a small part or a slightly heavier load, it can be easily handled to enhance operational efficiency.

Advantages

Space saving: Does not require a ground support structure. It can effectively save ground space in the work area.
High flexibility: With a rotatable cantilever, cover a large working range. Users can adjust the angle and position of the cantilever as needed, making it convenient to perform various operations.
Improve work efficiency: Due to its convenient operation and wide working coverage, the use of wall-mounted cantilever cranes can quickly and efficiently complete material handling tasks, improving work efficiency.
Good safety: This type of equipment is usually made of sturdy materials and is designed with safety factors in mind, such as overload protection. In addition, because they are fixed to the wall, the risk of equipment movement or instability is reduced.

Main Application

The wall mounted jib crane is suitable for a variety of scenarios.

Small factories: it can lift precision parts to help production line operation.
Warehouses: it can efficiently load and unload goods to save space and improve efficiency.
Workshops: it is used to carry accessories during equipment maintenance.

For limited space, it cleverly uses wall mounting, does not take up space on the ground, and realizes convenient lifting and transporting of materials. Wall mounted jib crane is a practical material handling equipment.

Parametri tecnici

Lifting capacity(t)		0.25			0.5			1
Lifting Height(m)		5	5.5	6	5	4.5	6	5	5.5	6
Valid Radius(m)		4	4.5	5	4	4.5	5	4	4.5	5
Sistema di lavoro		A3
Lifting speed	Slow speed(m/min)	0.8
	Normal speed(m/min)	8
Rotation speed(m/min)		20
Slewing angle		180°
Centre height(m)		1.2			1.6			2.56
Max length(m)		4.326	4.826	5.326	4.430	4.930	5.430	4.525	5.025	5.525
Total weight(kg)		343	362	378	389	405	420	768	782	810
