gantry crane

Carrello di sollevamento europeo

  • Lifting Capacity: 5-80 ton
  • Hoisting height: 16-24 meter
  • Hoisting Speed: 0.4/5 m/min
  • Traveling Speed: 2-20 m/min
  • Working Grade: M5

Descrizione

European hoist trolley is a lightweight and modular design lifting equipment, which is widely used in double beam bridge, gantry cranes and I-shaped rail systems. Its overall structure is compact and mainly consists of a small frame, lifting mechanism, operating mechanism and electrical control system. The small frame is welded with high strength steel, which has high rigidity and stability and can withstand large loads. The lifting mechanism is European wire rope hoist, which can achieve vertical lifting and lowering of heavy objects, while the operating mechanism drives the wheels horizontally along the track through the motor to ensure accurate positioning. Electrical control system adopts a modular design, integrates frequency conversion technology and intelligent control functions, to achieve smooth start, precise operation and efficient operation.

The European-style hoist trolley has a light structure and flexible operation. It is suitable for workshops, warehouses and other occasions, and is characterized by high efficiency, energy saving and safety.

Caratteristiche

  • Compact design: Small size and compact structure, suitable for environments with limited space, improving operational flexibility.
  • Efficient operation: Adopt advanced motors and frequency conversion speed regulation technology to achieve smooth start and stop and improve working efficiency.
  • Strong durability: Key components are made of high-strength materials, specially treated, with excellent durability and corrosion resistance.

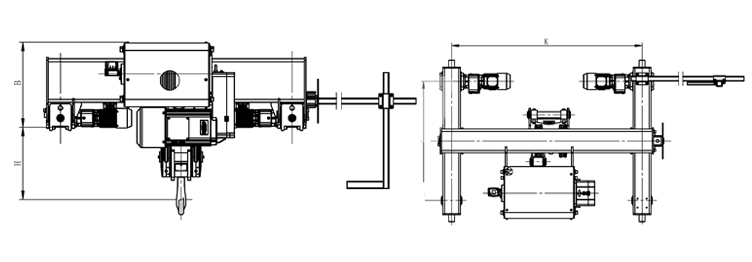

Parametri tecnici

55/0.84/12~205003301000
105/0.84/12~206055201000
163.3/0.536/12~207008601300
165/0.84/12~206708001300
205/0.84/12~206708001300
323.3/0.56/12~207509751300
325/0.88/22~2072010751300
405/0.88/22~2072010751300
503.3/0.512/22~2077011001400
632.4/0.416/22~2077011001400
802.4/0.416/22~2078511501600

Certificato

ce certificate
