Gru a cavalletto a traliccio singolo MH

Descrizione

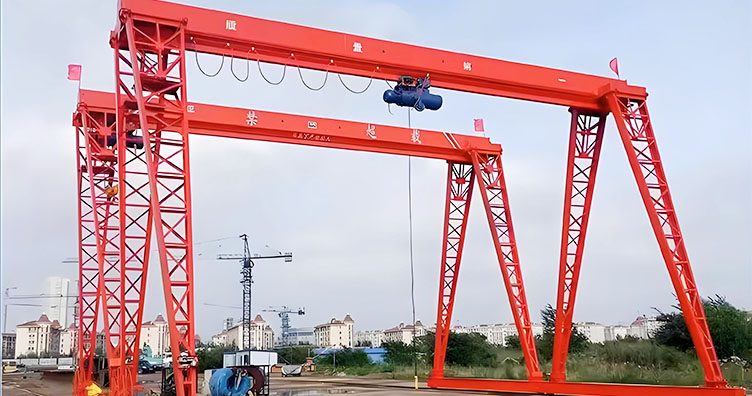

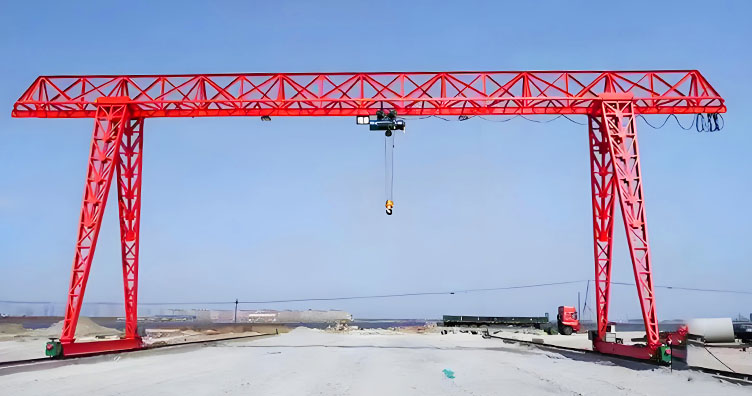

Single girder truss gantry crane is a specific type of gantry crane. It combines the advantages of single beam structure with the advantages of truss beam design. This type of gantry crane is usually for light to medium loads. Single truss gantry crane has the characteristics of light weight, compact structure and easy disassembly and assembly.

The main load-bearing component is a single crossbeam designed with a truss structure. The truss is a structure with multiple triangular frames. It can not only effectively reduce the overall weight of the crane, but also improve its rigidity and stability. Its outriggers support the main beam and secure it to the ground track, allowing the gantry to move along the track. Depending on the specific design requirements, the outriggers can be fixed or have wheels for easy movement. The lifting mechanism of single truss gantry crane is CD MD type electric wire rope hoist.

Il meccanismo di traslazione è costituito da una ruota o da un sistema di azionamento alla base degli stabilizzatori. Consente alla gru a cavalletto di spostarsi orizzontalmente lungo il terreno o su un binario dedicato per ampliare il campo operativo. I dispositivi di sicurezza comprendono interruttori di fine corsa, pulsanti di arresto di emergenza, protezioni da sovraccarico e altri componenti.

Caratteristiche

• Logistics warehousing: Suitable for material handling in warehouses with efficient space use.
• Manufacturing plants: For parts handling in production workshops, especially for flexible operation in limited space.
• Port terminals: Handling and stacking small containers, especially suitable for temporary work sites or small terminals.

Applicazione

• Lightweight: Due to the adoption of truss structure, the dead-weight of this gantry is lighter than traditional box beam structure.
• Easy installation: The truss components are easy to transport and assemble, reducing the time and cost of on-site construction.
• Beautiful: The unique appearance design is not only practical, but also decorative, suitable for modern factory environments.

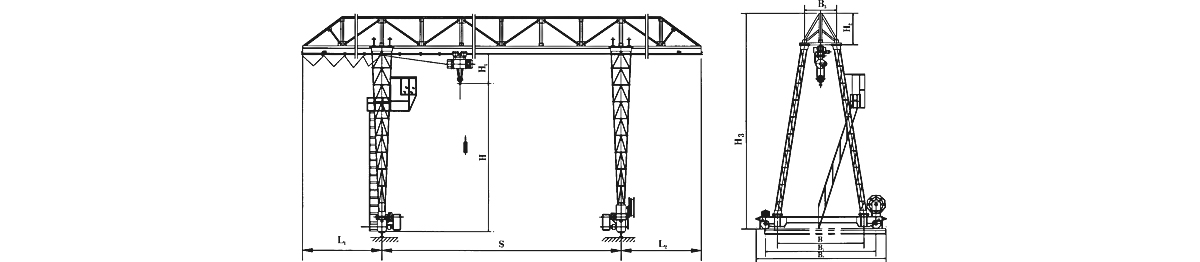

Parametri tecnici

Certificato
