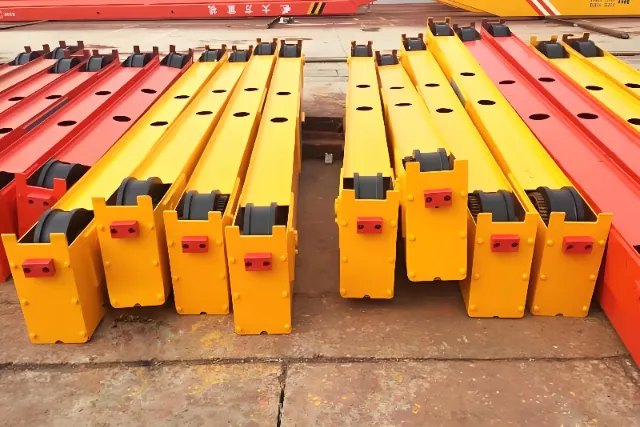

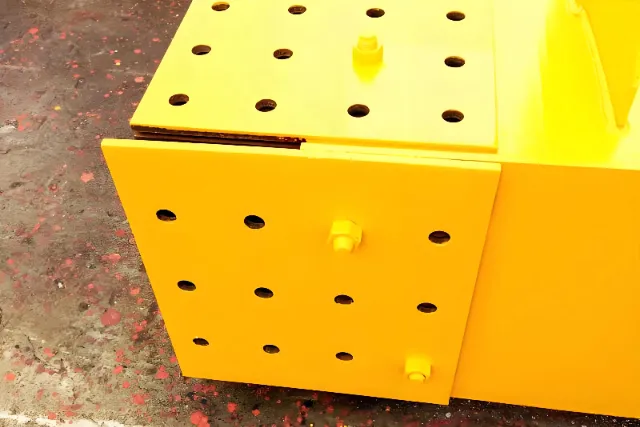

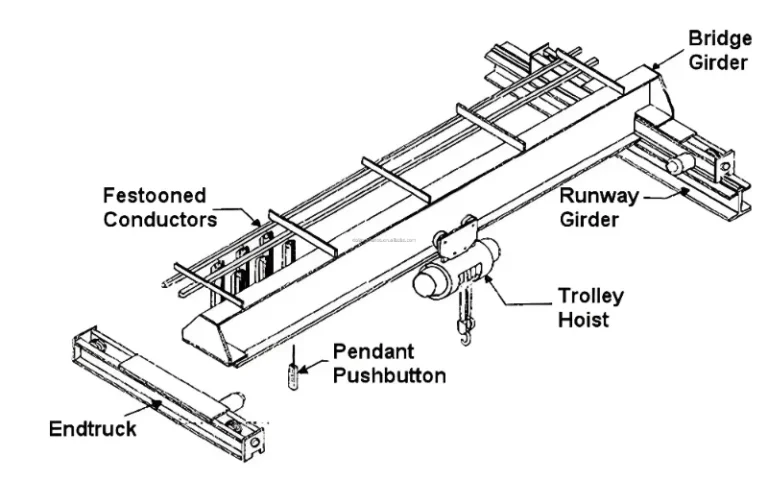

Single girder overhead crane mainly consists of main beam, end beams, electric hoist, H track, electric part and control system. The hoist of single girder overhead crane goes with CD, MD electric hoist or low headroom electric hoist. It is mainly applicable to workshops and warehouses. Dafang crane provides our clients with high quality overhead cranes with international CE certificate. It is one efficient and safe crane equipment.

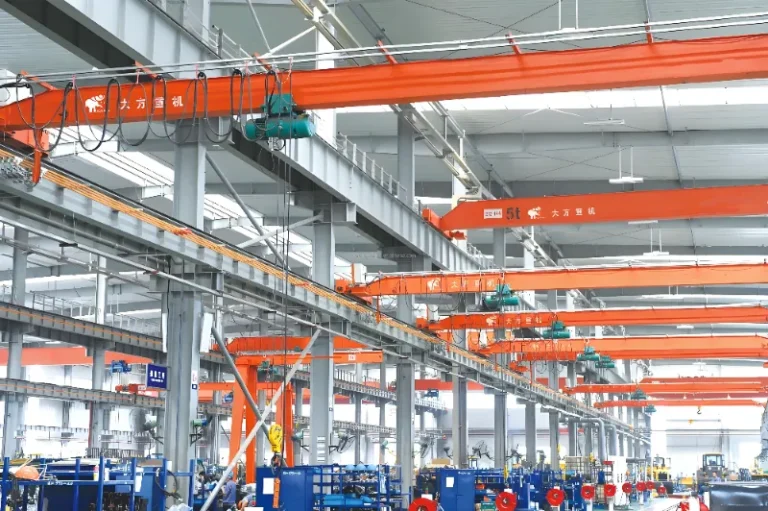

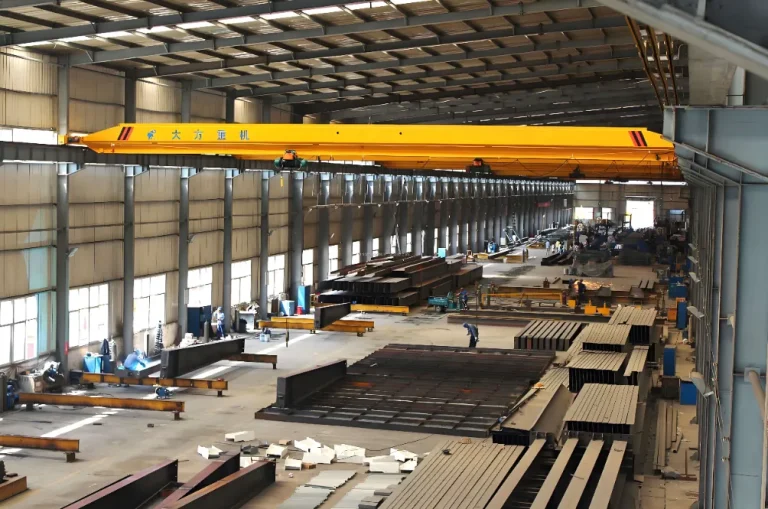

It has a wide application range, like manufacturing factory, workshops, warehouses and steel mills, etc.. Normally users put it in the indoors working sites. The main beam lays above the workshop or warehouse, with both ends sitting on columns or metal supports, forming a bridge structure. Taking electric hoist as the lifting mechanism, LD bridge crane could perform lifting missions with good efficiency. It is also easy to control and free of frequent maintenance.
| LD Single Girder Overhead Crane | |
| The parameters are standard. Customized solutions and designs are provided according to your actual needs. | |
| Working Class | A3, A4 |
| Capacity(t) | 1-32 ton |
| Span(m) | 3-35 meter |
| Lifting Height(m) | 3-50 meter |
| Lifting Speed(m/min) | 0.33-8, single or dual speed |
| Trolley Travelling Speed(m/min) | 2-30, single or dual speed |
| Crane Travelling Speed(m/min) | 2-30, single or dual speed |
| Power Supply | 380v 50hz 3p or customized |
| Temperature(℃) | -20-60 |
| Protection Grade | IP44-65 |
