MH Single Truss Gantry Crane

Description

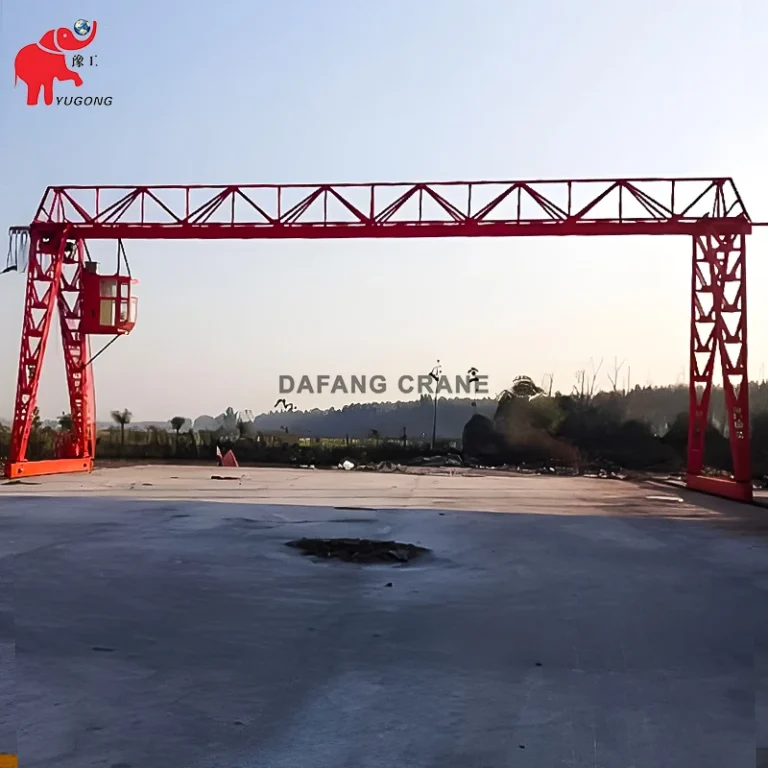

Single girder truss gantry crane is a specific type of gantry crane. It combines the advantages of single beam structure with the advantages of truss beam design. This type of gantry crane is usually for light to medium loads. Single truss gantry crane has the characteristics of light weight, compact structure and easy disassembly and assembly.

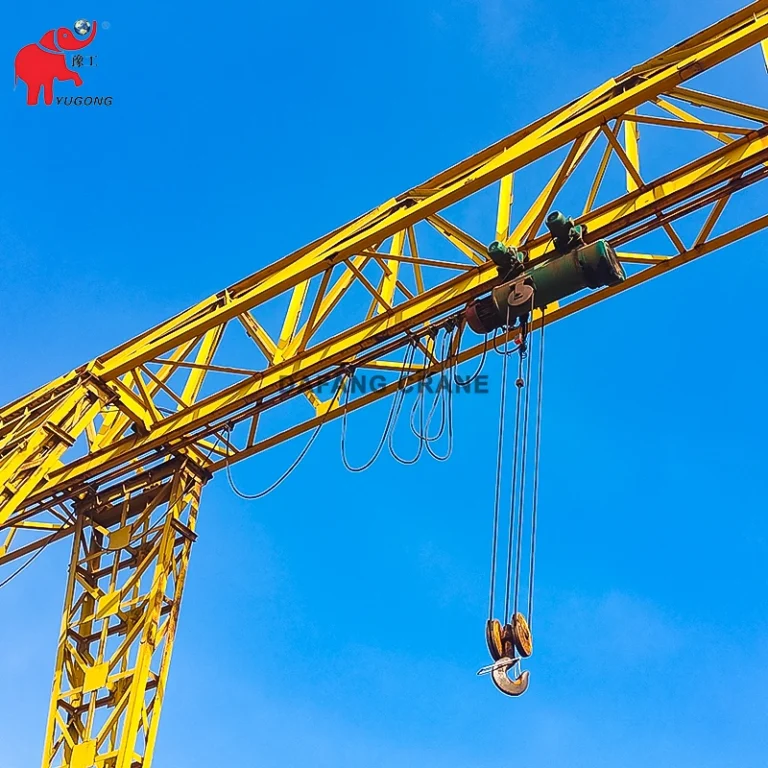

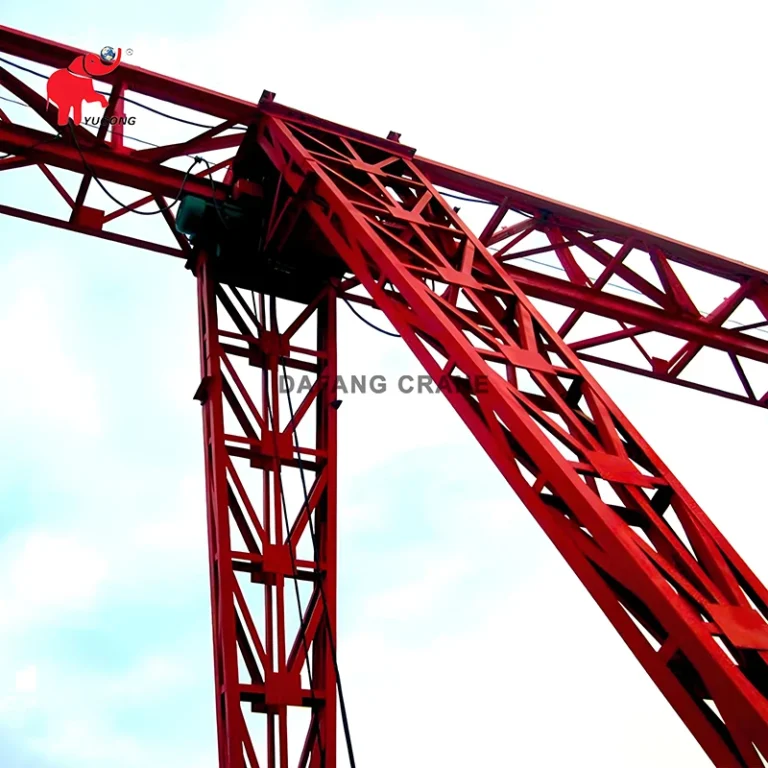

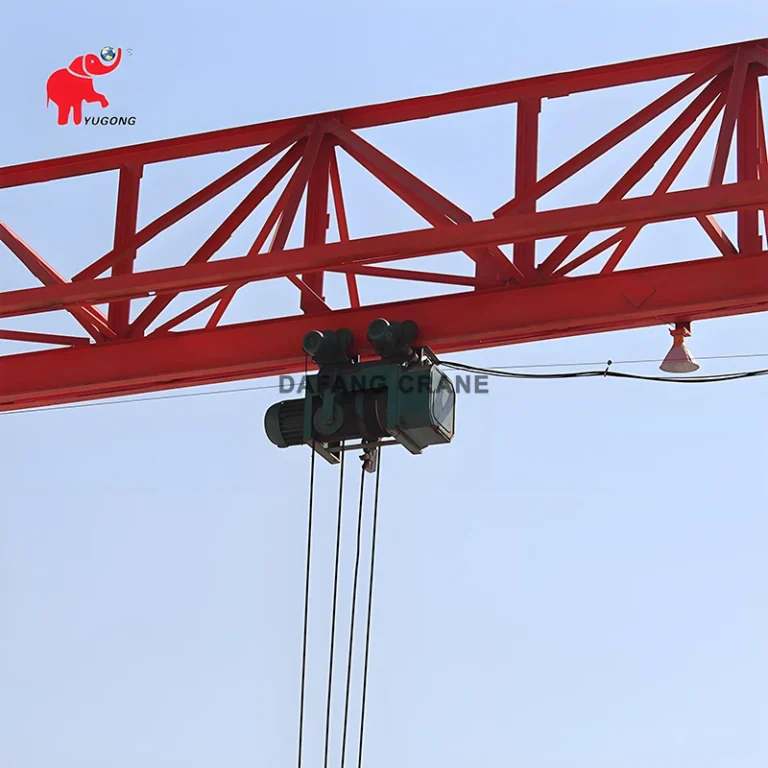

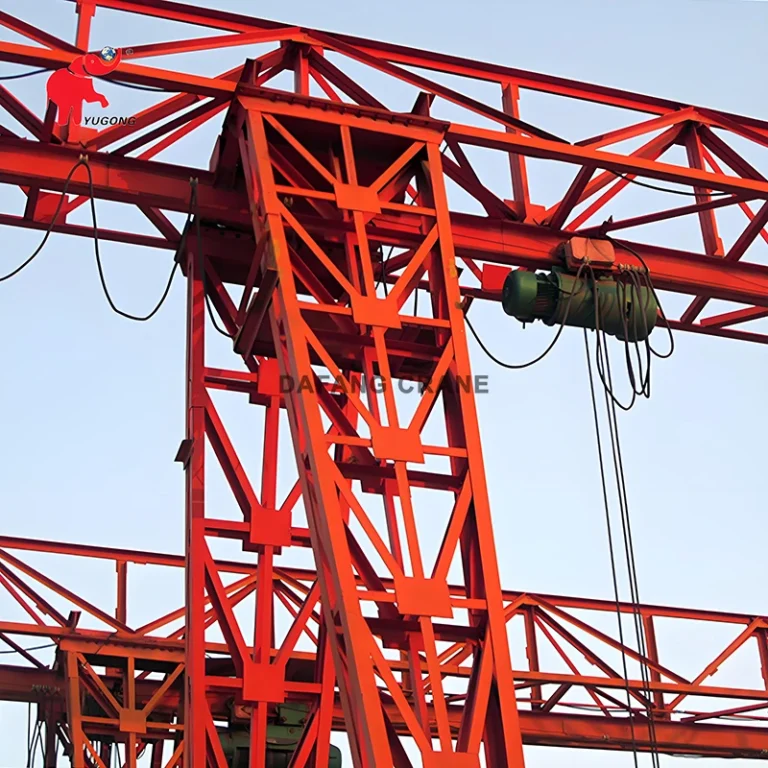

The main load-bearing component is a single crossbeam designed with a truss structure. The truss is a structure with multiple triangular frames. It can not only effectively reduce the overall weight of the crane, but also improve its rigidity and stability. Its outriggers support the main beam and secure it to the ground track, allowing the gantry to move along the track. Depending on the specific design requirements, the outriggers can be fixed or have wheels for easy movement. The lifting mechanism of single truss gantry crane is CD MD type electric wire rope hoist.

The traveling mechanism is wheel or drive system at the bottom of the outriggers. It enables gantry crane to move horizontally along the ground or a dedicated track to expand the operating range. And its safety devices include limit switches, emergency stop buttons, overload protectors and other components.

Features

• Logistics warehousing: Suitable for material handling in warehouses with efficient space use.
• Manufacturing plants: For parts handling in production workshops, especially for flexible operation in limited space.
• Port terminals: Handling and stacking small containers, especially suitable for temporary work sites or small terminals.

Application

• Lightweight: Due to the adoption of truss structure, the dead-weight of this gantry is lighter than traditional box beam structure.
• Easy installation: The truss components are easy to transport and assemble, reducing the time and cost of on-site construction.
• Beautiful: The unique appearance design is not only practical, but also decorative, suitable for modern factory environments.

Technical Parameters

Certificate
