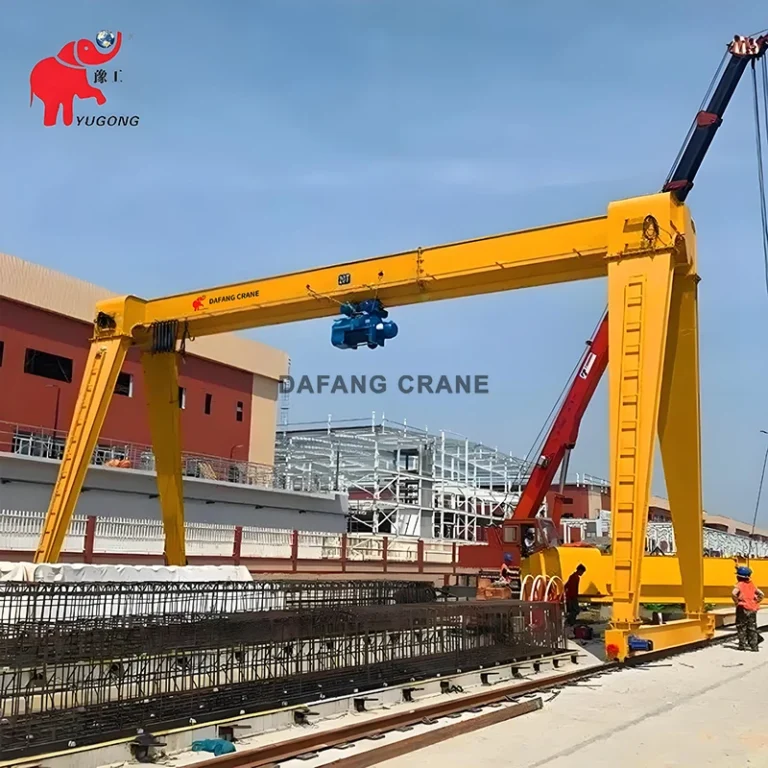

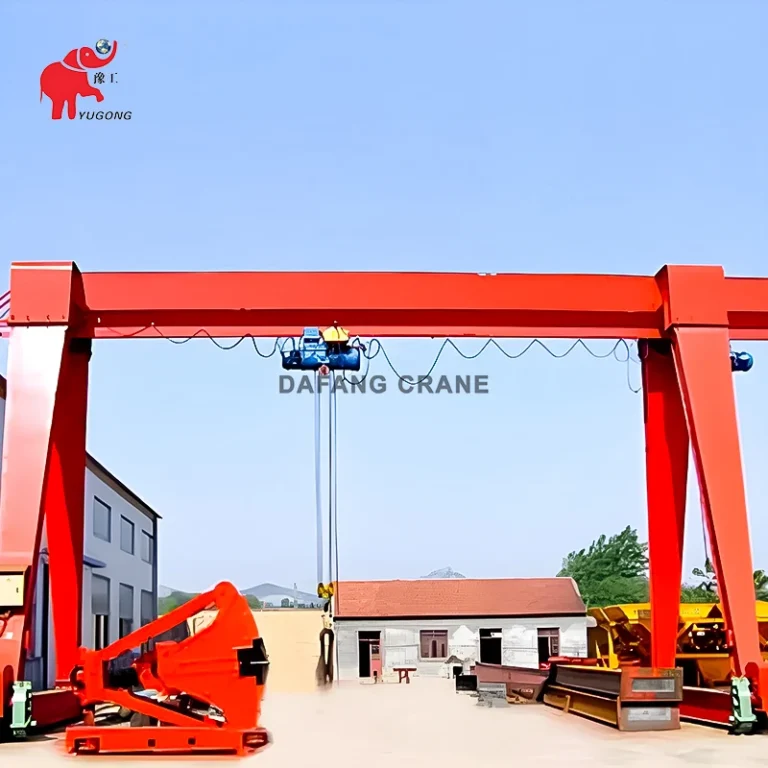

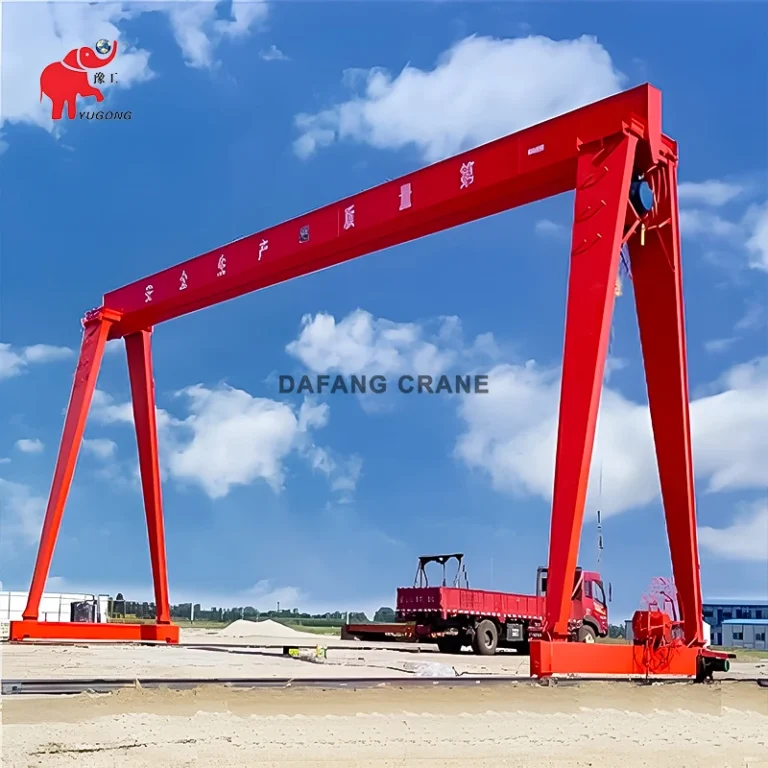

MH Type Single Beam Gantry Crane

Description

The single beam gantry crane is a general lifting equipment with simple structure. It is a popular using gantry crane in many different working sites. Normally, it plays a vital role in workshops, warehouses and construction sites for material handling. Taking electric hoist as the lifting mechanism, single beam gantry crane could perform tasks with high efficiency and stability.

The main beam is a horizontal beam at the top of the crane and is the core load-bearing component of the gantry crane. Its main function is to support the electric lifting hoist and bear the weight of the lifted objects. Two legs are vertical parts connected to both ends of the main beam to form a "gate" shaped frame. They provide stable support for the gantry crane, allowing it to move on the ground or on rails.

The traveling mechanism is wheel or drive system at the bottom of the outriggers. It enables gantry crane to move horizontally along the ground or a dedicated track to expand the operating range. And its safety devices include limit switches, emergency stop buttons, overload protectors and other components.

Features

• Simple and compact structure, cost effective: Box frame structure with electric hoist
• Customized Specifications for span, lifting capacity and height: Free tailored solution to meet your needs.
• Easy to control and user-friendly design: Saving labor and energy of using it.
• Durable construction for long service hours: With better quality materials, longer working life.

Application

• Manufacturing Industry: material handling within production workshops.
• Warehousing logistics: fast loading and unloading of goods in warehouses.
• Construction Sites: assist in the transportation and installation of building materials.
• Port terminals: handle the loading and unloading of small and medium-sized goods.

Technical Parameters

Model	MH Single bream gantry crane	Lifting Speed(m/min)	8(0.8/8)
Electric Hoist	CD1/MD1	Cross travelling Speed	20/30 m/min
Working Class	A4	Long travelling Speed	20/30 m/min
Overload Protection	Included	Span（m）	7.5-30 meter
Warranty	3 years
Weight (KG)	10000 kg
Power Source	50Hz 380V
Operational Method	Ground controlling；Remote controlling
Lifting Capacity(t）	1-32 Ton
