RMG Container Gantry Crane

Description

RMG rail container gantry crane is an efficient lifting equipment in container yards. Its structure is mainly composed of gantry frames, large truck running mechanisms, lifting mechanisms and trolley running mechanisms. The gantry adopts a box beam structure, which has high strength and stiffness, and can withstand heavy loads and wind loads. The gantry running mechanism moves the crane longitudinally along the track. Lifting mechanism is responsible for the vertical lifting of the container, while the gantry running mechanism realizes the horizontal movement of the container on the gantry beam. With advanced automated control systems, RMG gantry crane can achieve accurate positioning and efficient operation.

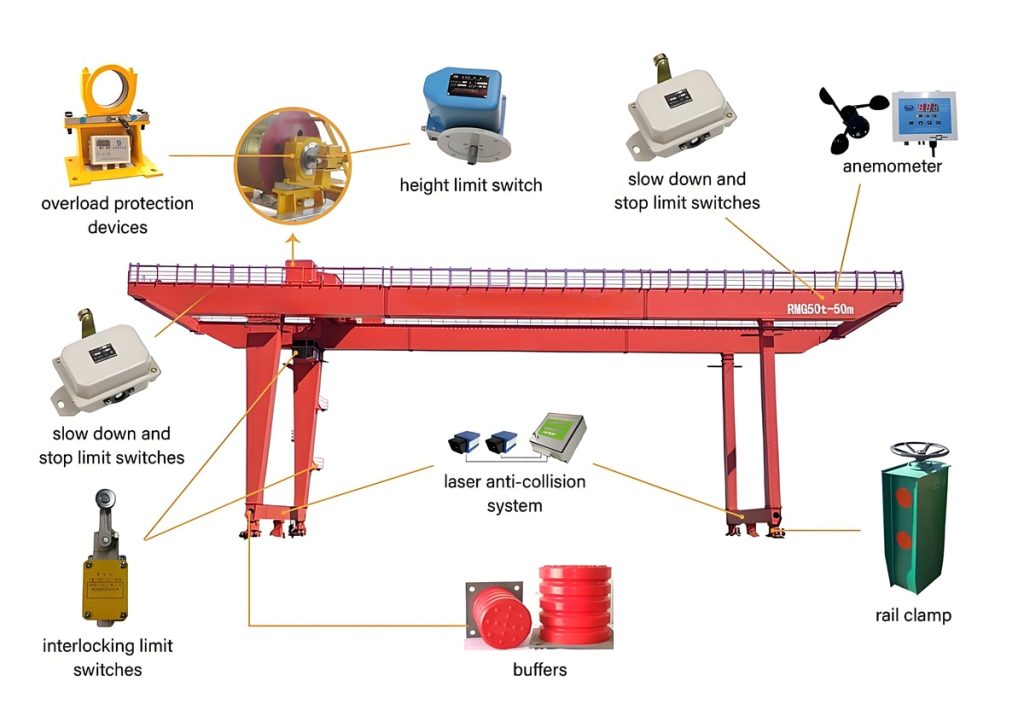

Rail mounted container gantry crane also pays attention to stability and safety in structural design. The gantry has two parallel legs and an upper cross beam. To meet different yard needs, the span of RMG cranes is adjustable, usually covering multiple container lanes. The lifting mechanism is driven by wire rope or chain, equipped with a dual suspender system. It can handle one 40-foot or two 20-foot containers simultaneously, significantly improving operating efficiency. The electrical system adopts frequency conversion control technology to achieve smooth start-up and precise positioning while reducing energy consumption. RMG container crane can also be integrated with the yard management system to achieve fully automated operations, further improving the operating efficiency and intelligence level of container yards.

Features

1. Efficient operating capability: Adopts a dual-sling design, significantly improving loading and unloading efficiency. Achieve rapid positioning and continuous operation, which is particularly suitable for high-throughput container yards.
2. Stable operation and energy-saving and environmentally friendly: Runs on fixed tracks, and the tracks are laid flat, which can ensure the smooth movement and reduce shaking and impact. Effectively reduces energy consumption and meets the requirements of green and environmental protection.
3. High degree of automation and intelligence: Integrate with yard management system (YMS) and container terminal operating system (TOS) to achieve fully automated operations. Through laser scanning, GPS positioning and sensor technology, it can automatically identify container locations, plan paths and complete loading and unloading tasks, greatly reducing manual intervention, improving operational accuracy and safety, while reducing operational costs.

Application

• Port container yard: For efficient loading and unloading, storage and transfer of import and export containers, support high throughput operations. Improve port logistics efficiency, and meet the rapid loading and unloading needs of large ships.
• Railway freight station: At railway freight stations, to achieve rapid container transfer between railways and road transport, optimize multimodal transport processes. Improve cargo transit efficiency, and reduce transportation costs and time.
• Logistics Park and Distribution Center: Support large-scale container storage, scheduling and distribution, meet the efficient operation needs of modern logistics, and improve the overall efficiency of the supply chain.

Technical Parameters

Certificate
